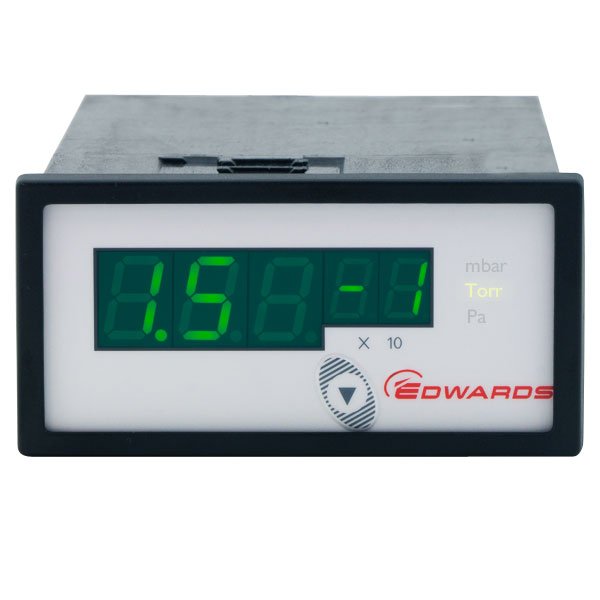

Edwards Active Digital Standard Vacuum Gauge Controller, ADC

Edwards Active Digital Standard Vacuum Gauge Controller Features:

• Plug and measure operation means you simply plug in the mains supply, connect the gauge and ADC displays the measured pressure
• The ADC supports Edwards gauges with a total measuring range of 2000 to 1 x 10-9 mbar (1500 to 7.5 x 10-10 Torr)
• Bright LED display gives clear, long distance readability
• The Edwards ADC Gauge displays units in mbar, Torr, Pascal or Volts
• Small 1/8 DIN enclosure, may be panel or bench mounted
• Simple push-button control makes operation highly intuitive

Active Digital Standard Vacuum Gauge Controller / D39590000 Overview:

The Edwards Active Digital Controller (ADC) is a compact single gauge controller and display in one. It features a LED display and simple push-button operation controls. The Edwards ADC controller automatically recognizes compatible Edwards gauges, loads the appropriate look-up table and displays the pressure in commonly used vacuum units.

There are two versions of Edwards ADC Gauge Controller available; the standard ADC Controller simply displays the pressure in choice of units, and the enhanced ADC includes a second gauge connection, two set-point relays, two analogue outputs and an RS232 interface.

The ADC mk2 enhanced controller can now support 2 different gauges e.g. APG100 and AIM.
