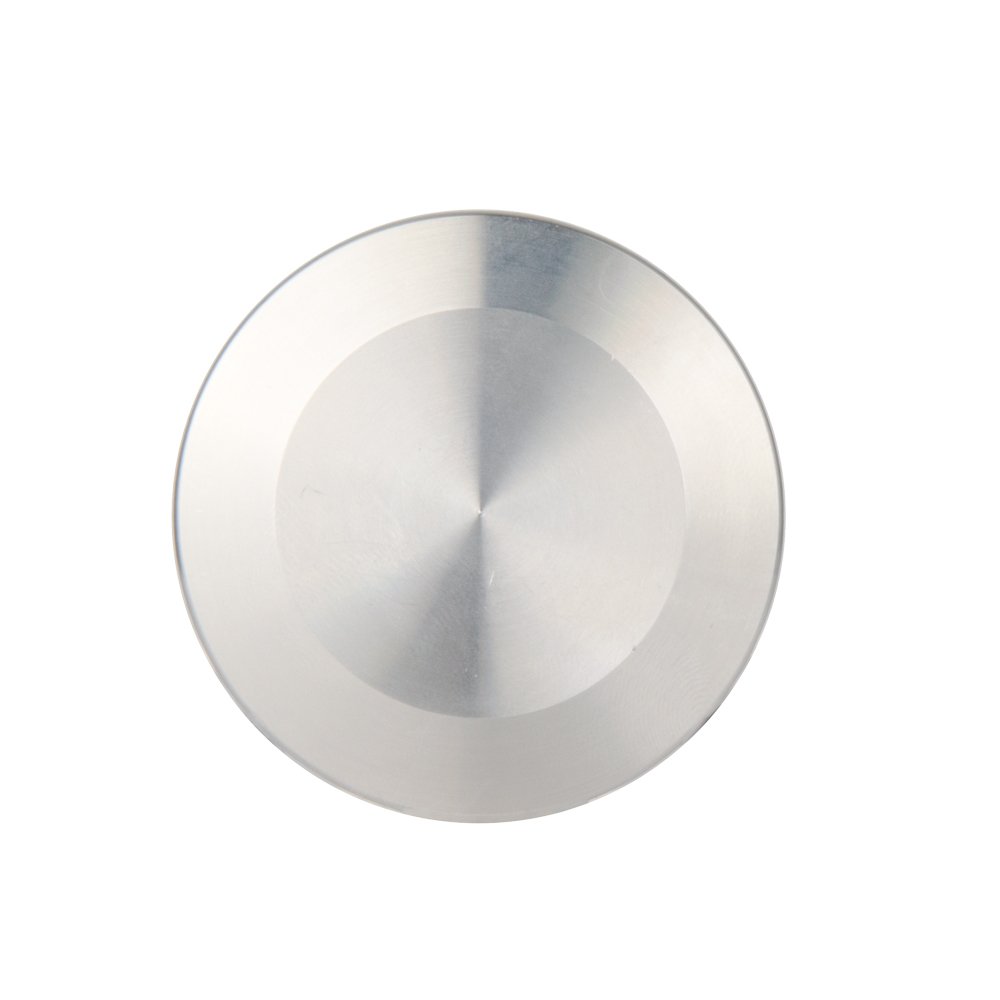

Blank Flange ,KF 80 (NW 80) , Blind Flange Cap , Vacuum Fitting Stainless Steel Stopper End Cap

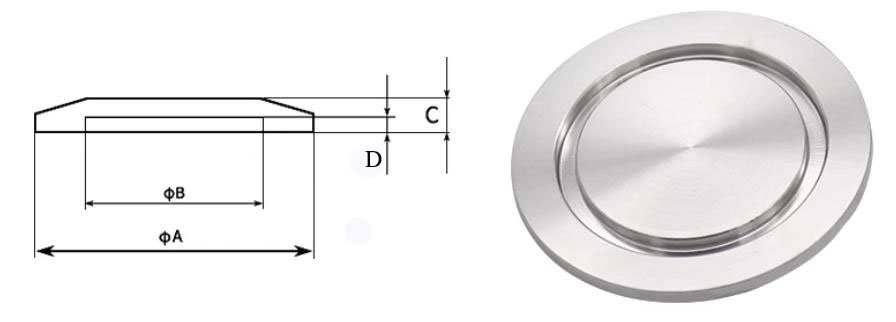

• A: 4.48 in / 114 mm
• B: 3.26 in / 83 mm
• C: 0.47 in / 12 mm
• D: 0.10 in / 2.5 mm

The Blank Flanges are available in the following sizes: NW 10, NW 16, NW 25, NW 40, NW 50, NW 63, NW 80, NW 100, NW 160, NW 200, NW 250.

The Blank Flanges are available in Aluminum or Stainless Steel.

KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.
