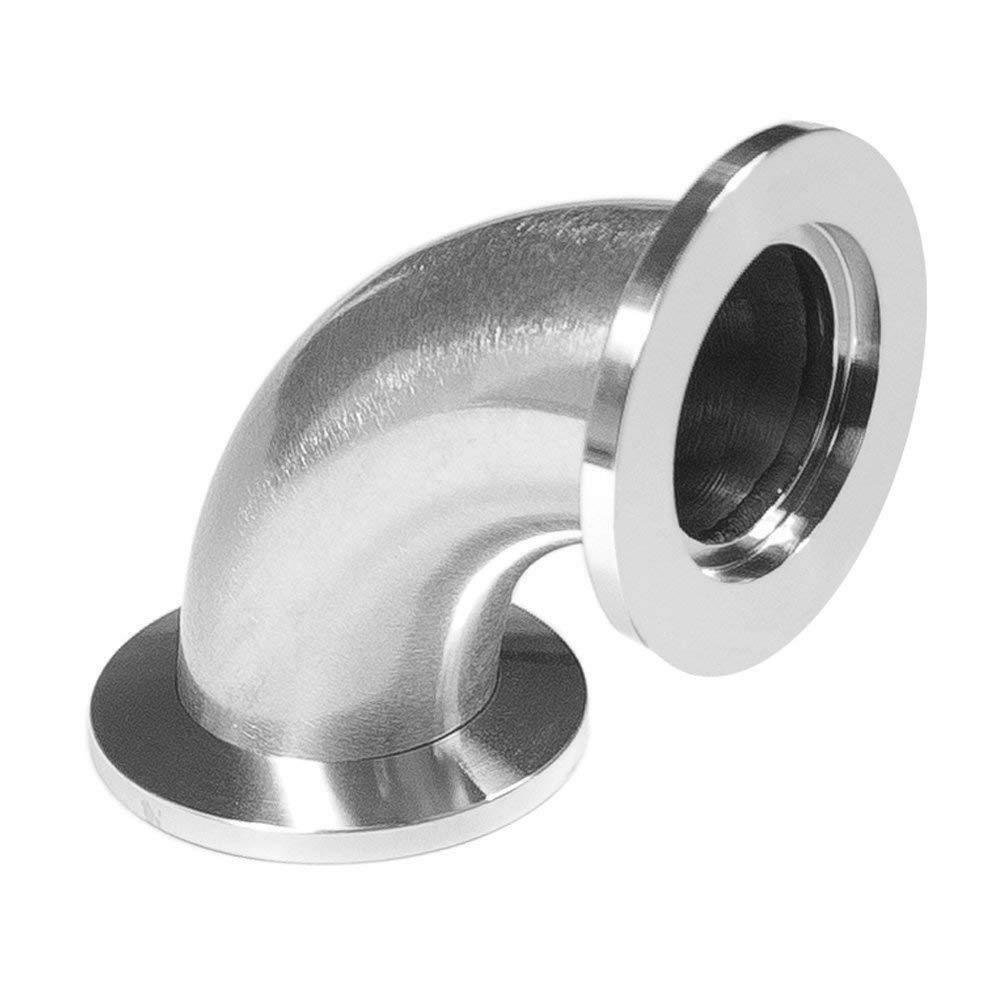

Elbow, 90 Degrees, KF-25 Vacuum Fittings NW 25, Stainless Steel 304, ISO-KF

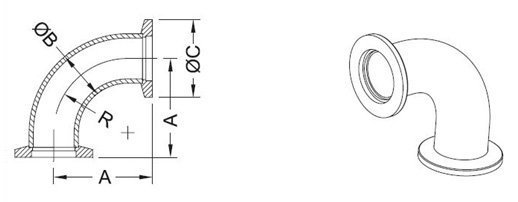

• A: 2.21 in / 56.2 mm
• B: 1 in / 25.4 mm
• C: 1.57 in / 40 mm
• R: 1.5 in / 38.1 mm

These KF-25  Elbows vacuum Fittings (90 Degrees) are available in the following sizes: NW 16, NW 25, NW 40, NW 50.

The KF 25 Vacuum Elbows (90 Degrees) are made out of  304 Stainless Steel.

KF (also referred to as NW) vacuum fittings assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.
